Description

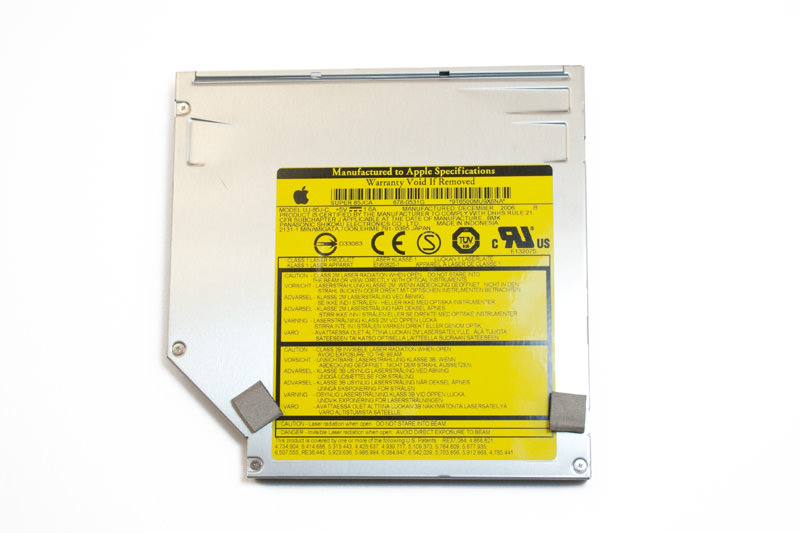

This is a replacement superdrive for the Intel iMac with the newer SATA connection. (Picture is of Matshita drive, drive may be either Matshita or Pioneer depending on inventory.)

Note that this drive uses a SATA Bus and NOT an ATA bus. You need to check your bus type before placing an order to verify you order the correct drive as iMacs used both SATA and PATA versions of the optical drives.

Supported Media: DVD: DVD-R, DVD-RW, DVD+R, DVD+RW, DVD+R DL CD: CD-R, Multi-Speed CD-RW, High-Speed CD-RW, Ultra-Speed CD-R. Read Support: DVD: DVD-ROM, DVD-VIDEO, DVD-R, DVD-RW, DVD+R, DVD+RW & DVD+R DL. CD: CD-ROM(Mode 1&2), CD-ROM XA, CD-DA, Video CD, PhotoCD, CD EXTRA, CD-Text, CD-R, CD-RW. Write Speed: DVD-R: 8X DVD-RW: 4X DVD+R: 8X DVD+RW:4X DVD+R DL*2: 2.4X CD-R: 24X CD-RW: 16X Read Speed: DVD: Max 8x CAV CD-ROM: Max 24x CAV Data Buffer (size): 2 MBytes
Apple Part #:
661-4845, 661-5519, 661-5138, 661-5933, 661-5172, 661-5283
Manufacturer Part #:
AD-5680, GA11N
EEE Codes:
661-4845:   3V0, 6EL, 75Z
661-5519:   DCPT, DDGV
661-5138:   3VO
661-5933:   DFFO, DFF2, DG96, DNRQ, DNRR
661-5172:   7Z1, 7Z2, CJ4, D3W, EEH, EEG
661-5283:   ARU
Compatible With:
See Compatibility List
Suggested Items for Installation:
N/A
Condition:
Refurbished (SKU22122), Used (GS22122)
Used parts are in Grade A- to A condition unless otherwise specified.
Warranty:
60 Day PowerbookMedic Warranty
Repair Guides:
Click to go to our Free Instructional Guides page.

Product Compatibility



Submit your device's serial number or model number to check for compatibility using our built-in system. These devices will be saved for future visits as well.

*This item has multiple product options. The list below includes all of those options. Make sure you select the correct product option for your model.


Models Model Numbers Options
iMac 20" 2.0GHz Core 2 Duo (A1224) - Early 2009 MC015LL/A
iMac 20" 2.26GHz Core 2 Duo (A1224) - Early 2009 MC015LL/A
iMac 20" 2.66GHz Core 2 Duo (A1224) - Early 2009 MB417LL/A
iMac 21.5" 2.5GHz Core i5 (A1311) - Mid 2011 MC309LL/A
iMac 21.5" 2.7GHz Core i5 (A1311) - Mid 2011 MC812LL/A
iMac 21.5" 2.8GHz Core i7 (A1311) - Mid 2011 MC812LL/A
iMac 21.5" 3.06GHz Core 2 Duo (A1311) - Late 2009 MB950LL/A
MC413LL/A
iMac 21.5" 3.06GHz Core i3 (A1311) - Mid 2010 MC508LL/A
iMac 21.5" 3.1GHz Core i3 (A1311) - Mid 2011 MC978LL/A
iMac 21.5" 3.2GHz Core i3 (A1311) - Mid 2010 MC509LL/A
iMac 21.5" 3.33GHz Core 2 Duo (A1311) - Late 2009 MB950LL/A
iMac 21.5" 3.6GHz Core i5 (A1311) - Mid 2010 MC508LL/A
iMac 24" 2.66GHz Core 2 Duo (A1225) - Early 2009 MB418LL/A
iMac 24" 2.93GHz Core 2 Duo (A1225) - Early 2009 MB419LL/A
iMac 24" 3.06GHz Core 2 Duo (A1225) - Early 2009 MB420LL/A
iMac 27" 2.66GHz Core i5 (A1312) - Late 2009 MB953LL/A
iMac 27" 2.8GHz Core i7 (A1312) - Late 2009 MB953LL/A
iMac 27" 3.06GHz Core 2 Duo (A1312) - Late 2009 MB952LL/A
iMac 27" 3.33GHz Core 2 Duo (A1312) - Late 2009 MB952LL/A
